WMD100-50H-485B programmable motor rotation stage with MODBUS protocol can handle a load of 30kg and comes with a small open size of 32mm for optical applications. RS485 open-loop programmable stepper integrated motors, RS485 programmable closed-loop stepper integrated motors, and CANopen/ ETHERCAT servo integrated motors all can be equipped with an overwound rotary table.
By USB exchange RS485 communication cable, motorized rotation and programmable rotary table can connect to any computer and support being controlled by PC LABVIEW, MATLAB, B, and so on.

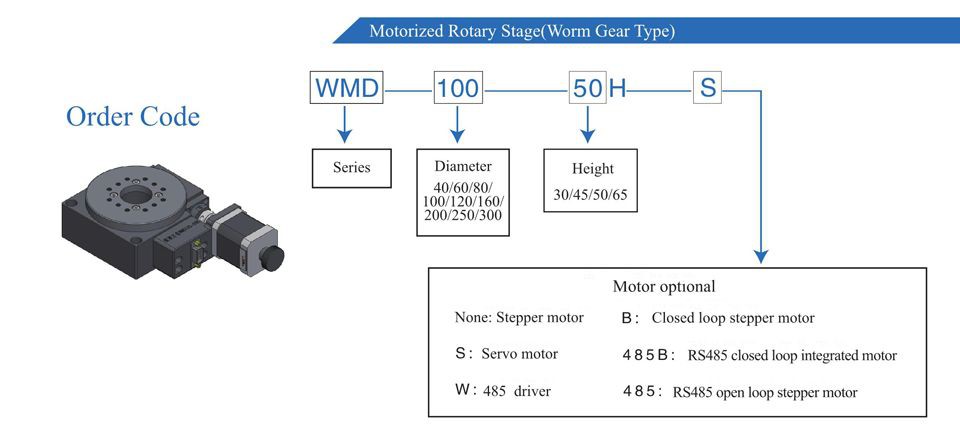

Model code
Specification for programmable motor rotation stage
|
Model |
WMD100-50H-485B |
||
|
Structure Parameter |
Rotary Angle |
360° Continuous Rotation |
|
|
Diameter |
100mm / 4 |
||
|
Ratio |
72:1 |
||
|
Drive MotoRS-485 |
85 Closed-Loop Integrated Motor |
||
|
Protocol |
MODBUS |
||
|
Drive Mechanism |
Worm Gear |
||
|
Max Speed |
40°/S |
||
|
Max Load |
30kg |
||
|
Open Aperture Size |
23mm |
||
|
Accuracy Parameter |
Net Weight |
4kg |
|
|
Resolution(No Subdivision) |
0.025° |
||
|
Repeated Accuracy |
±0.05° |
||
|
Absolute On Accuracy |
±0.06 |
||
|
Run-out Of the Top Plate |
15um |
||
|
Parallelism |
10um |
||
|
Electric Spec |
Home Position |
Type |
1 PCS Internal NPN Type Hall Sensor. |
|
Voltage |
DC5-24V |
||
|
Motor Connector |
DB9 Pin(Male) |
||
|
Notes： Our motorized rotation incorporates RS-4855 open-loop stepping integrated motors or closed-loop integrated stepper motors. CANopen/ ETHERCAT servo-integrated motors are also available. |
|||
|
|
|
WMD100-50H-485B Drawing (42BYG) |
|
|
Features
● The motors can be programmable.
● The motors support secondary development.
● Load capacity to 30 kg
● Small aperture size 32mm
● Standard speed: to 40 deg/sec
● Continuous360 360-degree rotation range
● Freeloaded worm drive for mini backlash
● Programmable stepping motors and servo motors are
|
|
As a national high-tech enterprise in China, WANMING offers a full range of Precision motorized rotation tables, which include full-size 40, 50, 60, 80,100,125,160,200,250, and 300 mm models. At the same time, it develops high-load rotary stage models to meet the requirements of different industrial applications.
available
