WMD2P Precision Motorized Gimbal Stage refers to motorized gimbals, mounts, and customized size brackets. The Precision Motorized Gimbal Stage is driven by two PCS motors, so also named a 2 2-axis motorized gimbal stage and table, which can do 360° pitch and yaw rotation motions in X and Z two degrees of freedom space. Motorized gimbal stage is widely used to test the automotive sensors in riderless cars.
1. The Precision Motorized Gimbal Stage is equipped with high-precision servo motors and precision worm gears and worm gears, with an Angle repeatability accuracy of ±0.05°. It is suitable for scenarios that require extremely precise Angle adjustment (such as laser interferometer calibration, secondary mirror adjustment of astronomical telescopes). In the fiber coupling system, the Precision Motorized Gimbal Stage ensures the Angle matching between the laser beam and the end face of the fiber through sub-arcsecond-level adjustment, maximizing the energy transmission efficiency.
2. The Precision Motorized Gimbal Stage adopts a rigid structure design. Even in high-speed rotation or external vibration environments, it can still maintain Angle stability and avoid optical path offset or imaging blurring caused by vibration.
3. Through the accompanying control software (such as a PC-based motion control platform), any Angle sequence can be preset (such as continuous scanning from 0° to 360°, custom Angle stepping), and periodic Angle tests or optical property analyses can be automatically completed. In the calibration of the spectrometer, the Precision Motorized Gimbal Stage automatically rotates the mirror to scan the optical signals of different wavelengths and generate the complete spectral curve.

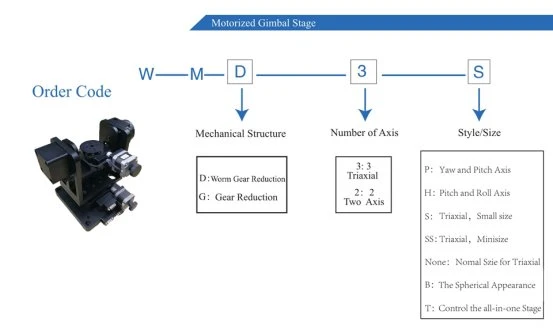

Model code
Specification for Precision Motorized Gimbal Stage
|
Model |
WMD2P |
|||
|
Structure Parameter |
Rotary Angle |
360° Continuous Rotation |
||
|
Number Of Axis |
2 |
|||
|
Ratio |
Z(Yaw) |
72:1 |
||
|
X(Pitch) |
90:1 |
|||
|
Y (Roll) |
|
|||
|
Drive Motor |
Stepping Motor |
|||
|
Drive Mechanism |
Worm Gear |
|||
|
Housing Materials |
Aluminum Alloy(Anodized Black) |
|||
|
Max Load |
5kg |
|||
|
Net Weight |
14kg |
|||
|
Accuracy Parameter |
Resolution(No Subdivision) |
0.025 |
||
|
Repeated Accuracy |
±0.05° |
|||
|
Absolute On Accuracy |
±0.06 |
|||
|
Axis Perpendicularity |
20um |
|||
|
Electric Spec |
Home Position |
Type |
Internal NPN Type Hall Sensor. |
|
|
Voltage |
DC5-24V |
|||
|
Motor Connector |
Aviation Plug |
|||
|
Notes： Precision Motorized Gimbal Stage with stepper motors; optional closed-loop stepper motors, servo motor, and programmable mod bus RS485 integrated motors. |
||||
Features
● Small size and volume
● High speed: 40 deg/sec
● Continuous 360°rotation stage or angular motions
● Two-axis, three-axis motor gimbals and stages are available
● Only a small 5kg load
● Net weight: 14kg
 |
 |
FAQ
Q1: Are you a trading company or a manufacturer
A: We are a factory producer.
Q2: What is the MOQ?
A: MOQ: 1PCS
Q3: How long is your delivery time?
A: For the standard model Precision Motorized Gimbal Stage, we have in stock. It needs 10 days to deliver after getting payment.
For non-standard customized sizes, it needs 10-15 working days after getting payment.
Q4: Do you provide samples? Is it free or extra?
A: Yes, we could offer the Precision Motorized Gimbal Stage to test, but you need to pay the freight and sample cost.
Q5: Do you have any instruments for measuring accuracy?
A: Yes, we have a high-precision API laser interference imported from the USA, which could show the test report.
